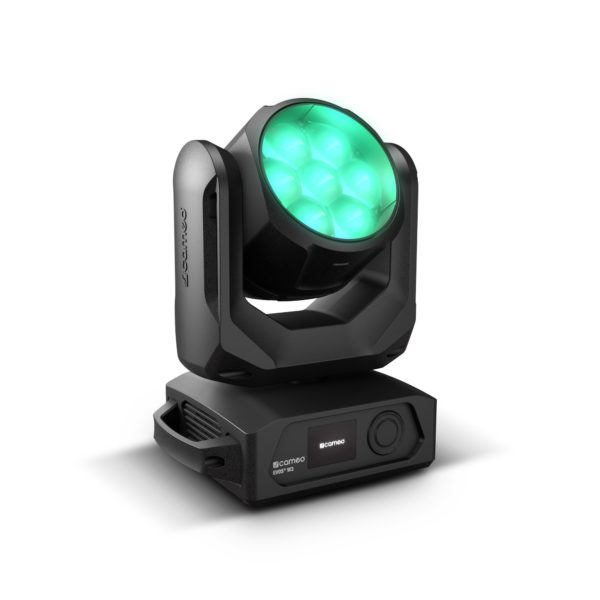

Product type LED Moving Lights
Type Moving Head
Colour spectrum RGBWW
Number of LEDs 7
LED type 40 W RGBW
Refresh rate 800 Hz, 1200 Hz,
2000 Hz, 3600 Hz, 12000 Hz, 25000 Hz
Dispersion 4.5 – 55 °
DMX input Network , RJ45
Ethernet In (ArtNET) , XLR 5-pin male
DMX output Network , RJ45
Ethernet Out (ArtNET) , XLR 5-pin female
DMX mode 18-channel ,
23-channel , 33-channel , 39-channel , 43-channel
DMX Functions Colour presets , Device Settings ,
Dimmer , Dimmer Fine , Effect patterns , Motion Macro , Pan/Tilt , Pan/Tilt
fine , Patterns , Single Pixel Control , strobe , Zoom , Zoom Fine
PAN movement 540°
TILT movement 235°
Control ArtNet 4 , DMX512
, KlingNet , RDM , sACN , W-DMX
Standalone modes Quicklight , Static Scene
Controls Encoder wheel
Indicators Backlit colour LCD
display
Operating voltage 100 V AC – 240 V AC, 50 – 60 Hz
Power consumption 325 W
Fuse T6.3AL 250 V
Power connector Neutrik PowerCON TRUE1 IN / OUT
Housing material ABS plastic , nylon , Polycarbonate
Cabinet colour Black
Protection class
IP IP20
Certification CE , ETL , RoHS
Cooling temperature-controlled
fan
Illuminance 53000 lx
CRI 2700 K (Ra94) ,
3000 K (Ra91) , 3800 K (Ra90)
Relative Humidity < 85 %, not
condensing
Luminous flux 4035 lm
Width 290 mm
Height 251 mm
Depth 350 mm
Accessories
(included) 1 m Power cable
with Neutrik powerCON TRUE1 plug , 2 x omega mounting
Weight 7,8 kg
