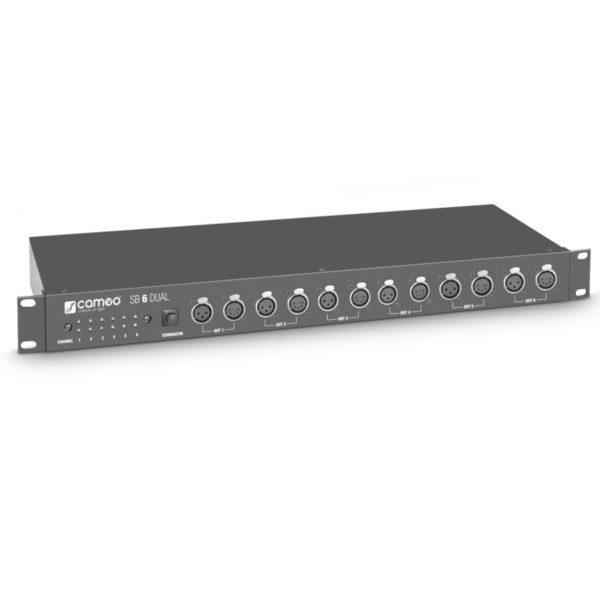

The Cameo CLSB6D is the professional solution for
configuring DMX networks.
The splitter and booster in 19″ format amplifies the
DMX input signal and distributes it to 6 electrically isolated outputs. It is
connected directly to the DMX controller or to DMX devices. The input and the
THRU socket for looping of the signal are duplicated on the front and back of
the CLSB6D and connected in parallel. Bright LEDs show the DMX and power status
of the channels on the front panel, the outputs are located on the back. A
switchable 120 Ohm terminating resistor on the DMX THRU output and the power
switch complete the equipment; the IEC-cable is supplied. For convenient output
connector access and reverse installation the rack-mount angles can be attached
to the rear of the chassis.
