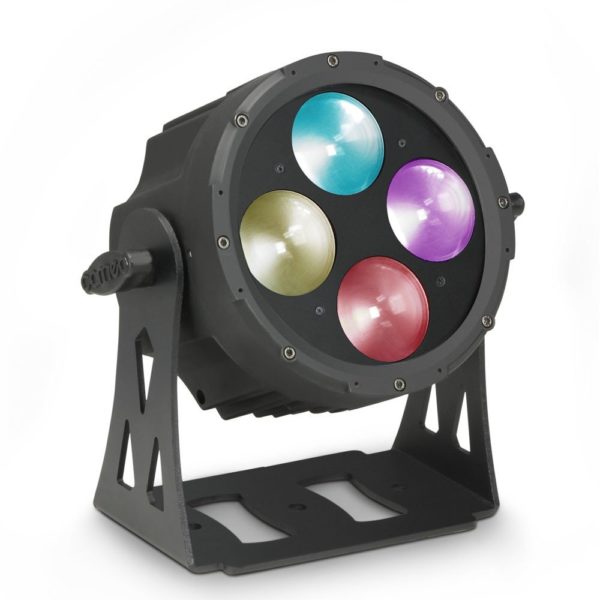

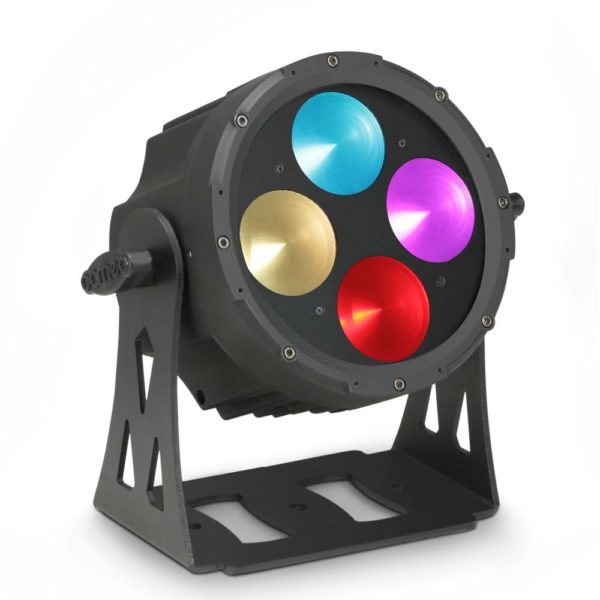

The Cameo Flat Pro Spotix 4 is a compact, flat PAR light with RGB colour mixing for demanding professional use. Four long-lasting, 30 watt strong COB LEDs generate seamless colour blends with a beam angle of 30° and 3800 lux illuminance. The Single Pixel Control provides pixel-mapping effects for brilliant, eye-catching lighting.
The Cameo Spotix 4 can be controlled in the DMX modes with 2-channel, 3-channel 1, 3-channel 2, 9-channel and 18-channel. The built-in microphone allows an external sound control. The projector is equipped with numerous programs and diverse functions and can be used as master, slave and standalone. A backlit display and the Enter, Value Up, Value Down and Mode buttons are used for simple, intuitive operation.
The Cameo Flat Pro Spotix 4 operates with highly efficient convection cooling and is thus absolutely noiseless; it works on all mains voltages from 100 to 240 volts. The robust, black metal housing is equipped with 3-pin and 5-pin XLR sockets for the input and output of the DMX signal; powerCON connectors from leading manufacturer Neutrik are used for the power supply and output. An adjustable multi-purpose mounting bracket offers a variety of alignment and installation options.
- Item Number: CLFLATPROSP4
- Product Type: LED PAR
- Type: FLAT PAR COB
- Colour Spectrum: RGB
- Number of LEDs: 4
- LED Type: 30 W COB
- Beam Angle: 30°
- DMX Input: XLR 3-pin male, XLR 5-pin male
- DMX Output: XLR 5-pin female, XLR 3-pin female
- DMX Mode: 2-channel, 3-channel 1, 3-channel 2, 9-channel, 18-channel
- DMX Functions: Single Pixel Control, Strobe, Colour Fade, Master Dimmer, Sound Control, Colour Jump
- Standalone Modes: Colour Fade, Colour Jump, Colour Macro, Sound Control, Slave Mode, Static Colour
- Controls: Enter, Value Up, Value Down, Mode
- Display Elements: backlit LC display
- Power Supply: 110 V AC – 240 V AC, 50 – 60 Hz
- Power Consumption: 150 W
- Power Connector: Neutrik powerCon
- Housing Material: metal
- Housing Colour: black
- Cooling System: convection
- Illuminance: 3800 lx
1 m
- Refresh Rate: 3600 Hz
- Other features: 1 m power cable with Neutrik PowerCon and safety plug included, multifunctional mounting bracket
Dimensions without mounting bracket
- Width: 230 mm
- Height: 230 mm
- Length: 140 mm
