LD Systems CURV 500 AVS – Portable Array System AV Set, sort

kr 8.950,00

inkl. mva

CURV 500 AVS passer perfekt over alt der musikk spilles: barer, klubber, skole og fest, diskret men potent!
Systemet presterer hele 380 watt RMS og et maks lydnivå på 122 dB.


CURV 500 AVS er utstyrt med 10″ bass-refleks subwoofer med




  • kl. D forsterker,


  • Beskyttelseskretsløp: Limiter, beskyttelse mot kortslutning og over-oppheting og for høy spenning.


  • 4-kanals mikser med 16 digitale effekt-presets


  • Bluetooth® overføring fra lydkilde


  • Combo og Speakon-kompatible kontakter.

  • Sidehøyttalerne: 1 stk 4″ og 3 stk 1″ høyttaler-elementer og elektronikk som sørger for god dynamikk.

Se video av CURV 500 AVS her

Varenummer: 610596-C500-S Kategorier: , ,

The CURV 500 AV Set is the perfect fit anywhere music is played: in bars, clubs, studios and even at home as a home entertainment system. Featuring a power of 380 watts RMS and a maximum sound pressure level of 122 dB, the CURV AV Set can remain discreetly in the background, but also provide an impressive rocking performance.


The 10″ bass-reflex subwoofer with Class D power amplifier represents the core of the CURV 500 AVS and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and Bluetooth®. Combo and Speakon-compatible sockets offer extensive connectivity options. Furthermore,the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles.


The two satellites are operated via SmartLink® adapters. The elements, only 12 x 12 cm in size, are equipped with LD System’s own WaveAhead® technology; a 4″ and three 1″ drivers provide a coherent and extremely detailed playback with high pressure and dynamics.

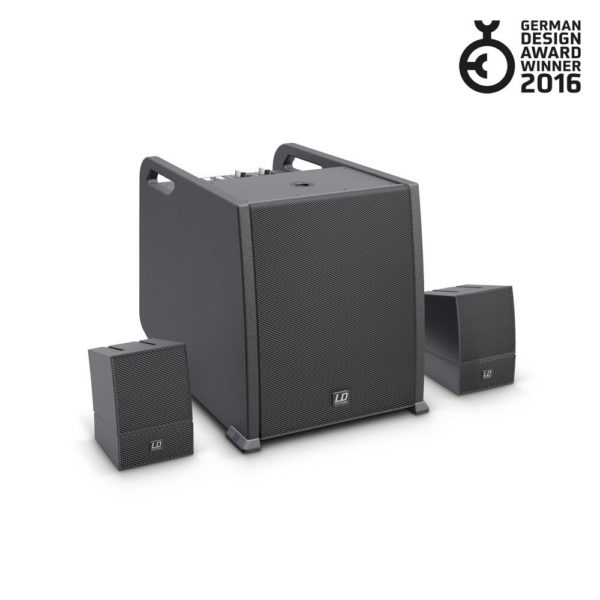

The CURV 500 AV Set includes a subwoofer with a mixer unit, two satellites, two SmartLink® adapters, and two speaker cables. With optional wall and ceiling mounting systems, the satellites can be installed anywhere, where good sound and subtle appearance are required.



  • Model name: LDCURV500AVS

  • Type: Portable Array System

  • Rated System Power (RMS): 380 W

  • Number of Array Satellites: 2

  • Number of Smartlink® Adapters: 2

  • Number of Subwoofers: 1

  • Max. SPL (continuous): 116 dB

  • Max. SPL (peak): 122 dB

  • Subwoofer: 10″ bass reflex

  • Satellite: MF: 1 x 4″ / HF: 3 x 1″ with WaveAhead® Technology / 16 ohms

  • Frequency response: 47 Hz – 20 kHz

  • Dispersion (H x V): 110° horizontal, 10° vertical per satellite

  • Amplifi cation: Class D

  • Power Output (RMS/Peak): Subwoofer: 300 W / 1200 W, Array Satellites: 2 x 160 W / 2 x 640 W

  • Protection: DSP based multiband-limiter, Short Circuit, Overheating, Over-current

  • Subwoofer Features: 4 channel mixer, Bluetooth®, 16 DFX Presets, 4 System DSP Presets, threaded M20 fl ange, 3 ergonomic handels

  • Subwoofer Controls: Input Level (Ch1-4), Hi-Z, Hi/Low EQ (Ch1-2), DFX (Ch1-2), DFX Presets, DSP Presets, Blutetooth Link, Mono/Stereo, Sub Level, Main Level

  • Subwoofer Indicators: Signal, Limit, Bluetooth®, Power

  • Subwoofer Connectors: 1x Mic/Hi-Z (XLR/6,3mm Jack Combo), 1x Mic (XLR/6,3mm Jack Combo), 2x Line (XLR/6,3mm Jack Combo), 3,5mm Jack, 2 x Array Satellite Out (Speakon compatible), Line Out (XLR), System Out (5-pin XLR)

  • Subwoofer Material: Plywood

  • Subwoofer Surface: PA Painting

  • Array Satellite Features: WaveAhead® Technology, internal crossover, metal grille

  • Array Satellite Material: Diecast Aluminium

  • Array Satellite Surface: Powder coating

  • Smartlink® Adapter Features: dual 16 mm fl ange, 2x M6 thread for optional wall mount

  • Smartlink® Adapter Connectors: 1x Speakon compatible, 1x Phoenix

  • Smartlink® Adapter Material: Diecast Aluminium

  • Smartlink® Adapter Surface: Powder coating

  • Subwoofer Dimensions (W x H x D): 325 x 383 x 491 mm

  • Array Satellite Dimensions (W x H x D): 122 x 122 x 122 mm

  • Smartlink® Adapter Dimensions (W x H x D): 122 x 57 x 122 mm

  • Subwoofer Weight: 16.5 kg

  • Array Satellite Weight: 1.7 kg

  • Smartlink® Adapter Weight: 0.6 kg

  • Accessories (included): Power cord, 2 x Speaker cable with Speakon-compatible plugs on terminal block (3 m)
