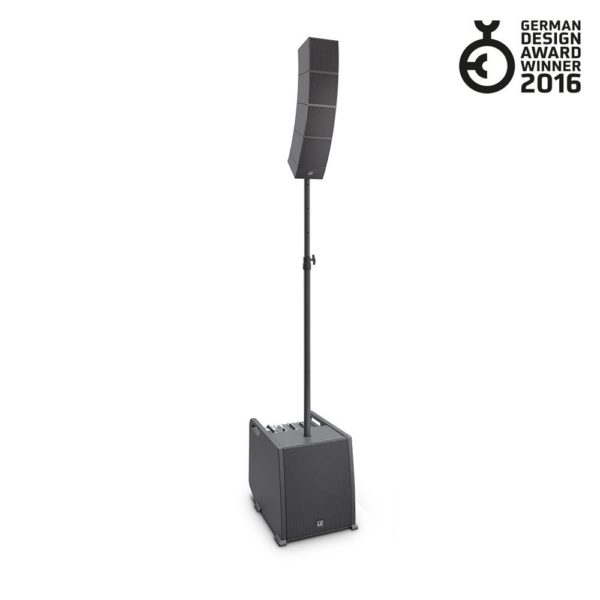

The Entertainer Set consists of a high-performance 10″ bass reflex subwoofer and an easily configurable array system with four satellites. Featuring a power of 460 watts RMS and a maximum sound pressure level of 128 dB, the CURV 500 ES Set is the ideal sound system for small events or conferences and meetings.
The compact, transport-friendly CURV 500 is an array system with 4 interlocking satellites, which are operated via a SmartLink® adapter. The elements, only 12 x 12 cm in size, are equipped with LD System’s own WaveAhead® technology. A 4″ and three 1″ drivers provide a coherent and extremely detailed playback with high pressure and dynamics.
The 10″ bass-reflex subwoofer houses the Class D power amplifier and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and Bluetooth®. Combo, and Speakon-compatible sockets offer extensive connectivity options, and the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles.
The CURV 500 Entertainer Set includes a subwoofer with a mixer unit, four satellites, SmartLink® adapters, extension tube and speaker cables. With the Power Extension set, the Entertainer Set can provide even more power, at any time, thus expanding to a high-performance Power Set.
Model name: LDCURV500ES
- Type: Portable Array System
- Rated System Power (RMS): 460 W
- Number of Array Satellites: 4
- Number of Smartlink® Adapters: 1
- Number of Subwoofers: 1
- Max. SPL (continuous): 122 dB
- Max. SPL (peak): 128 dB
- Subwoofer: 10″ bass reflex
- Satellite: MF: 1 x 4″ / HF: 3 x 1″ with WaveAhead® Technology / 16 ohms
- Frequency response: 47 Hz – 20 kHz
- Dispersion (H x V): 110° horizontal, 10° vertical per satellite
- Amplifi cation: Class D
- Power Output (RMS/Peak): Subwoofer: 300 W / 1200 W, Array Satellites: 2 x 160 W /2 x 640 W, Array Satellites: 2 x 160 W /2 x 640 W
- Protection: DSP based multiband-limiter, Short Circuit, Overheating, Over-current
- Subwoofer Features: 4 channel mixer, Bluetooth®, 16 DFX Presets, 4 System DSP Presets, threaded M20 fl ange, 3 ergonomic handels
- Subwoofer Controls: Input Level (Ch1-4), Hi-Z, Hi/Low EQ (Ch1-2), DFX (Ch1-2), DFX Presets, DSP Presets, Blutetooth Link, Mono/Stereo, Sub Level, Main Level
- Subwoofer Indicators: Signal, Limit, Bluetooth®, Power
- Subwoofer Connectors: 1x Mic/Hi-Z (XLR/6,3mm Jack Combo), 1x Mic (XLR/6,3mm Jack Combo), 2x Line (XLR/6,3mm Jack Combo), 3,5mm Jack, 2 x Array Satellite Out (Speakon compatible), Line Out (XLR), System Out (5-pin XLR)
- Subwoofer Material: Plywood
- Subwoofer Surface: PA Painting
- Array Satellite Features: WaveAhead® Technology, internal crossover, metal grille
- Array Satellite Material: Diecast Aluminium
- Array Satellite Surface: Powder coating
- Smartlink® Adapter Features: dual 16 mm fl ange, 2x M6 thread for optional wall mount
- Smartlink® Adapter Connectors: 1x Speakon compatible, 1x Phoenix
- Smartlink® Adapter Material: Diecast Aluminium
- Smartlink® Adapter Surface: Powder coating
- Subwoofer Dimensions (W x H x D): 325 x 383 x 491 mm
- Array Satellite Dimensions (W x H x D): 122 x 122 x 122 mm
- Smartlink® Adapter Dimensions (W x H x D): 122 x 57 x 122 mm
- Subwoofer Weight: 16.5 kg
- Array Satellite Weight: 1.7 kg
- Smartlink® Adapter Weight: 0.6 kg
- Accessories (included): Power cord, Distance bar, Speaker cable (2.2 m)
