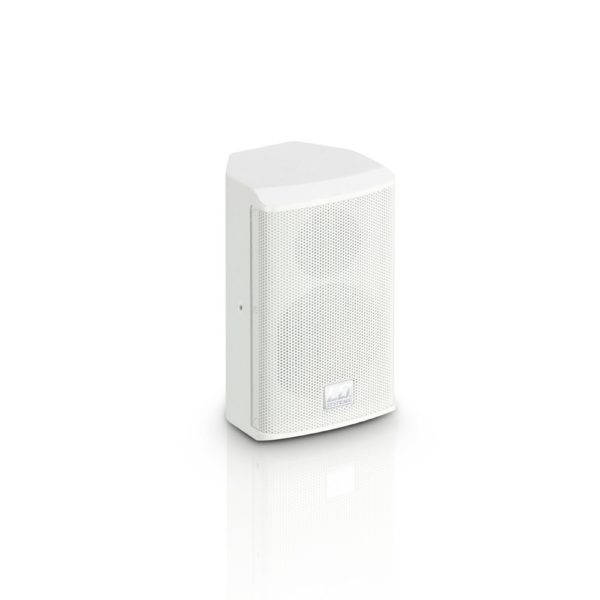

LD Systems SAT 42 G2 installasjonshøyttaler, passiv, 2 stk

The LD Systems SAT42G2 is an ultracompact 2-way speaker that is suitable for smaller installations and unobtrusive integration in practically any surroundings, e.g., in bars and restaurants, retail shops or even at home.

A balanced sound with a 60° x 60° dispersion angle and amaximum sound-level pressure of 103dB is ensured by the 4″ custom woofers and a 1“ silk dome tweeter with wave guide. The impedance of 16 ohms permits parallel operation of eight SAT42G2 speakers on 2 ohms. For a deeper bass foundation with powerful drive, the subwoofers in the LD installation series are the ideal addition.

The cabinet with a rugged textured coatingis made of 12 mm MDF and is available in black and white. M6 inserts and an included mounting bracket provide varied possibilities for mounting; a universal joint mount is available as an accessory. It is connected via spring terminals.

Specifications 4″ Installation Monitor Passive:

• Model Name: LDSAT42G2W


• Type: Sealed



• Components:



  • Woofer: 4″ Custom Made



  • Compression Driver: 1″ Custom Made


• Dispersion: 60° x 60°


• Power Capacity (Cont.): 60 W


• Frequency Range: 75 Hz – 20 kHz


• SPL (1 W / 1 m): 85 dB


• Max SPL: 103 dB


• Impedance: 16 ohms


• Connectors:



  • Input: Clamp – type



• Cabinet Material: 12 mm MDF


• Cabinet Surface: Painting


• Dimensions (W x H x D): 140 x 230 x 125 mm


• Features: M6 rigging / mounting points, mounting brackets
