LD Systems SAT82 AG2W, aktiv, 120 watt, hvit, install.-høytt

kr 2440,00

inkl. mva

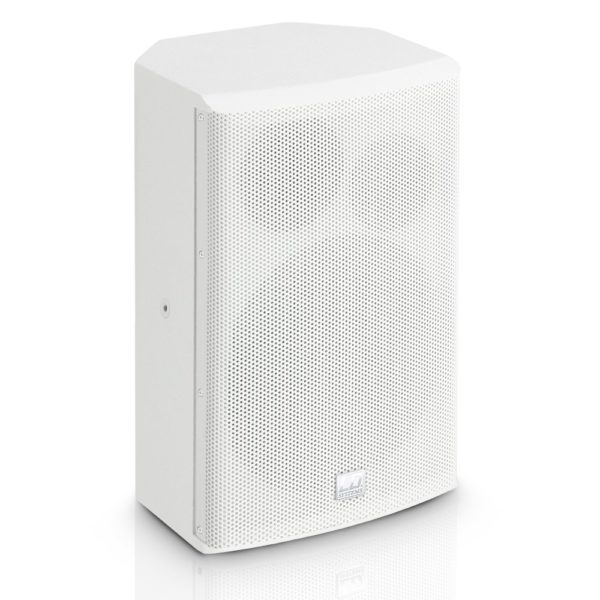

SAT82AG2W er en hvit, kompakt 2-veis, aktiv installasjons-høyttaler. Passer godt inn i et hvert miljø med sitt stilige design. Fås også i sort.


Med bass-reflex design med 8″ spesialbygget mellomtone/bass og 1“ tweeter med horn, er denne høyttaleren et godt alternativ når det stilles krav til naturtro lydbilde med bred frekvensgang og god dynamikk!


Anbefalt brakett til montasje: SUWMB10



  • 50 Hz – 20 kHz med 60° spredningsvinkel

  • Vedvarende lydtrykk: 120 watt

  • Spiss-effekt: Inntil 480 W

  • Maks lydtrykk: 114 dB

  • Solid 15 mm MDF-materiale

  • Dimensjoner (B x H x D): 274 x 410 x 243 mm

  • Vekt: 7 kg

  • Tilkobling: Klemmefeste

The LD Systems SAT82AG² is an active installation monitor, which provides a convincing performance on a PC or laptop and as a home studio monitor.


The compact 2-way bass reflex design is equipped with an 8″ custom-made woofer and a 1″ compression driver which are driven by an 80 Watt Class AB power amplifier. The input is a combo socket; an XLR socket is used to loop through the signal. With a frequency response of 50 Hz – 20 kHz and 114 dB maximum sound pressure, the SAT82AG² produces a balanced sound with high dynamics. The monitor features protection circuits for the tweeter against overcurrent, and a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.


The cabinet of the SAT82G² is made of 12mm MDF with M6 flight points and is available in black or white with a durable textured paint finish. A versatile mounting bracket is included; a universal joint mount is available as an accessory.


· Product Type: installation monitor


· Type: active


· Woofer Size: 8″


· Woofer Size: 203.2 mm


· Woofer Magnet: ferrite


· Woofer Brand: custom-made


· HF Driver Size: 1″


· HF Driver Size: 25 mm


· HF Driver Magnet: ferrite


· HF Driver Brand: custom-made


· Amplifier (A): Class A/B


· Dispersion Angle (H x V): 60° x 60°


· Power Output (RMS): 80 W


· Frequency Response: 50 Hz – 20,000 Hz


· Max SPL: 114 dB


· Protection: overcurrent, HF drivers


· Controls: volume, power switch (on/off), power mode (on/auto)


· Indicators: Power, Overload


· Line Input Connectors: 6.3 mm TRS, XLR


· Line Output Connectors: XLR


· Power Supply: transformer


· Operating Voltage: 220 V AC – 240 V AC, 50 – 60 Hz


· Cabinet Material: 12 mm MDF


· Cabinet Surface: textured coating


· Cabinet Colour: white


· Cabinet Type: bass reflex


· Width: 274 mm


· Height: 410 mm


· Depth: 243 mm


· Features: wall bracket
