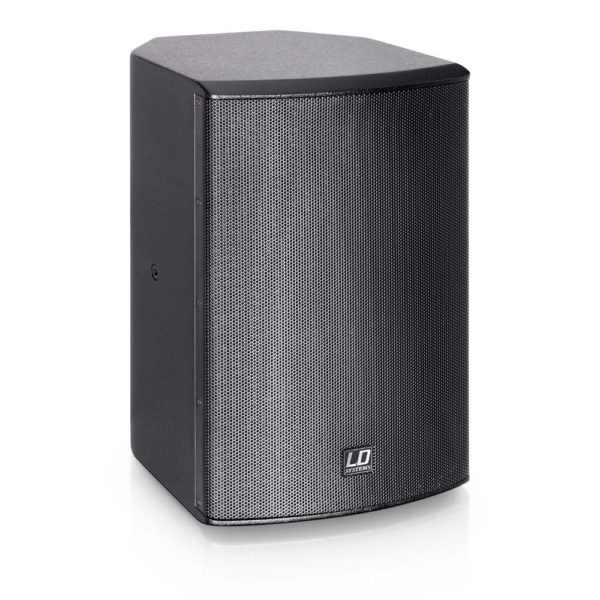

The LD Systems SAT82AG² is an active installation monitor, which provides a convincing performance on a PC or laptop and as a home studio monitor.
The compact 2-way bass reflex design is equipped with an 8″ custom-made woofer and a 1″ compression driver which are driven by an 80 Watt Class AB power amplifier. The input is a combo socket; an XLR socket is used to loop through the signal. With a frequency response of 50 Hz – 20 kHz and 114 dB maximum sound pressure, the SAT82AG² produces a balanced sound with high dynamics. The monitor features protection circuits for the tweeter against overcurrent, and a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.
The cabinet of the SAT82G² is made of 12mm MDF with M6 flight points and is available in black or white with a durable textured paint finish. A versatile mounting bracket is included; a universal joint mount is available as an accessory.
· Product Type: installation monitor
· Type: active
· Woofer Size: 8″
· Woofer Size: 203.2 mm
· Woofer Magnet: ferrite
· Woofer Brand: custom-made
· HF Driver Size: 1″
· HF Driver Size: 25 mm
· HF Driver Magnet: ferrite
· HF Driver Brand: custom-made
· Amplifier (A): Class A/B
· Dispersion Angle (H x V): 60° x 60°
· Power Output (RMS): 80 W
· Frequency Response: 50 Hz – 20,000 Hz
· Max SPL: 114 dB
· Protection: overcurrent, HF drivers
· Controls: volume, power switch (on/off), power mode (on/auto)
· Indicators: Power, Overload
· Line Input Connectors: 6.3 mm TRS, XLR
· Line Output Connectors: XLR
· Power Supply: transformer
· Operating Voltage: 220 V AC – 240 V AC, 50 – 60 Hz
· Cabinet Material: 12 mm MDF
· Cabinet Surface: textured coating
· Cabinet Colour: white
· Cabinet Type: bass reflex
· Width: 274 mm
· Height: 410 mm
· Depth: 243 mm
· Features: wall bracket
