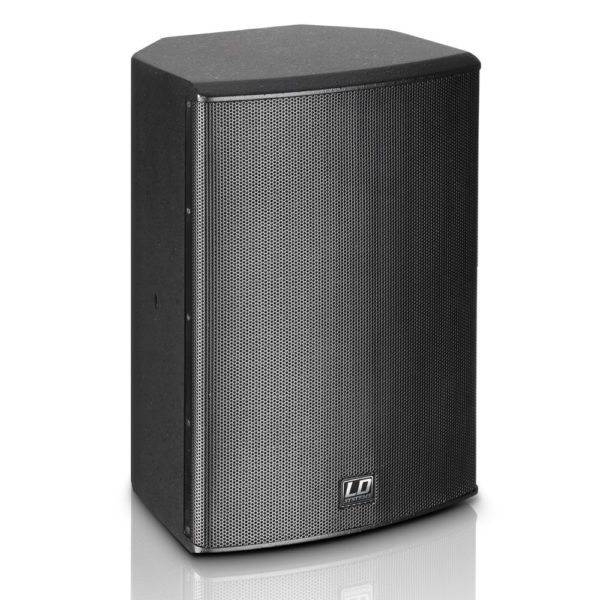

The LD Systems SAT82G2 is a compact, especially dependable 2-way speaker for demanding installation solutions. It blends unobtrusively into practically any surroundings and thus is also suitable for home systems.
The bass-reflex design is loaded with an 8″ custom woofer and a 1“ silk dome tweeter with wave guide, which permit powerful and extremely dynamic reproduction within a range of 50 Hz – 20 kHz with a dispersion angle of 60° and attain a maximum sound-level pressure of 114 dB. The LD SAT82G2 is rated for a Peak power load of 480 W.
The sturdy cabinet is made of 12mm MDF with a durable textured finish and is available in black and white. M6 rigging points and an included mounting bracket provide numerous possibilities for mounting. Additionally, a universal joint mount is available as an accessory. The SAT82G2 has spring terminal connectors.
Specifications
- Model Name: LDSAT82G2W
- Type: Bass Reflex
- Components:
- Woofer: 8″ Custom Made
- Compression Driver: 1″ Custom Made
- Woofer: 8″ Custom Made
- Dispersion: 60° x 60°
- Power Capacity (Cont./Peak): 120 W / 480 W
- Frequency Range: 50 Hz – 20 kHz
- SPL (1 W / 1 m): 93 dB
- Max SPL: 114 dB
- Impedance: 8 ohms
- Connectors: Input: Clamp – type
- Cabinet Material: 15 mm MDF
- Cabinet Surface: Painting
- Dimensions (W x H x D): 274 x 410 x 243 mm
- Features: M6 rigging / mounting points, mounting brackets
