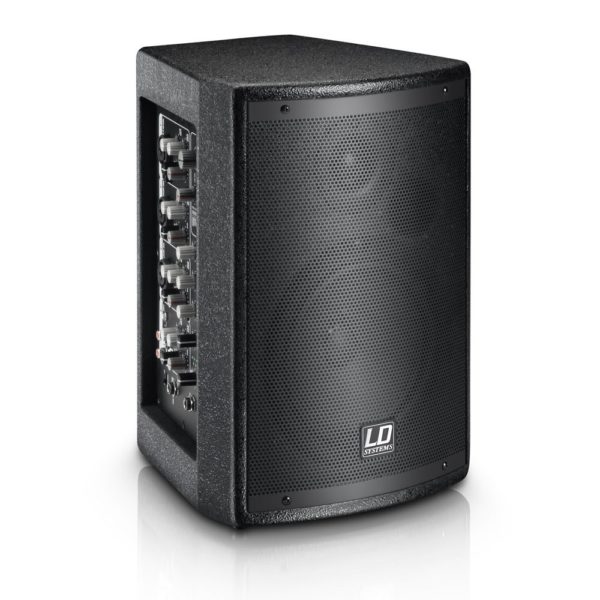

LD Systems Stinger MIX 6 A G2 Active 2-Way Loudspeaker with Integrated Mixer
With a built-in mixer, the compact, lightweight Stinger MIX 6 AG2 active loudspeaker is the perfect choice for small-scale PA and personal monitoring applications. It features a 6.5″ woofer and 1″ HF transducer with an 80 Hz to 20 kHz frequency response and 80° x 70° dispersion delivering amazing sound with clarity and punch.
The integrated mixer provides a stereo line and 3 microphone channels with high and low EQ, switchable hi-Z input and phantom power plus 24-bit digital effects. It allows for connecting a wide variety of sources including MP3 and CD players, iPods, instruments and condenser mics. The output section includes a 3-band master EQ for overall tone shaping and feedback control, 4-segment LED metering, RCA recording outputs and an adjustable monitor out. The Stinger MIX 6 A G2 incorporates aClass D amplifier with 2 x 280 watts peak power and 6.3 mm TRS output to power its optional passive companion Stinger MIX 6 G2.
Dual bottom and side stand mount inserts permit both vertical and horizontal setup, the latter putting the mixer controls right at your fingertips. On its own or in tandem with the passive unit, the Stinger MIX 6 A G2 provides awesome performance and versatility in an easily portable package.
A transport bag, a slave speaker and a speaker stand are available optionally.
Type: active
Woofer Size: 6.5″
Woofer Size: 165.1 mm
Woofer Brand: custom made
Tweeter Size: 1″
Tweeter Size: 25 mm
Tweeter Brand: custom made
Dispersion Angle (H x V): 80° x 70°
Frequency Response: 80 Hz – 20,000 Hz
Amplifier: class D
Amplifier Power (RMS): 2 x 70 W
Amplifier Power (Peak): 2 x 280 W
Max SPL: 122 dB
Protection: limiter, short circuit, over voltage, overload, temperature
Mixer
Channels: 4
Microphone Input Channels: 3
Connector Type Microphone Inputs: XLR/ 6.3 mm jack (combo)
Controls for Microphone Input Channels: EQ High, EQ Low, DFX Send, Level, Hi-Z Switch (channel 1 only)
Input Impedance Microphone Input Channels: (unbalanced) 14 kOhms
Input Sensitivity Microphone Input Channels: 70 mV
Line Input Channels: 1
Connector Type Line Input Channels: 3.5 mm stereo jack, 2 x RCA
Controls Line Input Channels: EQ High, EQ Low, DFX Send, Level
Input Impedance Line Input Channels: (unbalanced) 4.4 kOhms
Input Sensitivity Line Input Channels: – 5 dBu
Hi-Z Inputs: 1
Hi-Z Input Connectors: 6.3 mm jack
Input Impedance Hi-Z Input Connectors: 100 kOhm
Monitor Line Outputs: 1
Connector Type Monitor Line Output: 6.3 mm jack (balanced)
Controls for Monitor Line Output: Monitor Volume
Max Output Level Line Output Monitor: 28 dBu
Record Output: 1
Connector Type Record Output: 2 x RCA
Max Output Level Record Output: 20 dBV
Reinforced Main Output: 1
Connector Type Reinforced Main Output: 6.3 mm (min. 4 Ohm impedance)
Increased power main output (at 4 ohm): max 70 W / 140 W
DSP Digital Effects Unit
DSP Number of Programs: 16
DSP Controls: Presets, DFX return, Mute switch
DSP Display Elements: Peak LED
Main Section
Main Section Controls: EQ Low, EQ Mid, EQ High, Main Level, Phantom Power, switch operating voltage, power switch
Phantom Power: 15 V
Main Section Indicators: 4 segment LED level meter, power LED
Power Socket: IEC power socket
Power Supply: transformer
Operating Voltage: 110 V AC – 120 V AC, 50 – 60 Hz / 220 V AC – 240 V AC, 50 – 60 Hz
Power Consumption (max.): 180 W
Cabinet
Cabinet Type: bass reflex
Cabinet Material: MDF
Cabinet Surface: textured coating
Cabinet Colour: black
Width: 323 mm
Height: 214 mm
Depth: 222 mm
Other Features: 2 x 16 mm pole mount socket, rubber feet
