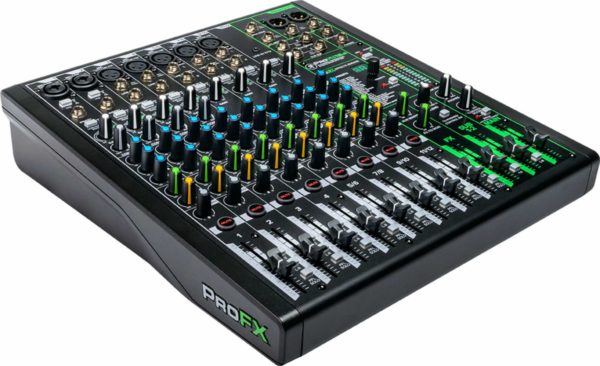

- Type:Analog Mixer with USB Interface
- Channels:12 (8 x mono, 1 x stereo)
- Computer Connectivity:USB (2 x 4)
- A/D Resolution:24-bit/192kHz
- Faders:11 x 60mm Faders
- Inputs – Mic Preamps:2 x XLR-1/4″ combo
(mic/line/Hi-Z), 5 x XLR (mic) - Phantom Power:Yes
- Inputs – Line:2 x 1/4″, 6 x 1/4″ (3
x stereo), 1 x 1/8″ (stereo) - Outputs – Main:2 x XLR, 2 x 1/4″ (L/R),
2 x 1/4″ (control room) - Outputs – Other:2 x 1/4″ (sub group
out) - Aux Sends:1 x FX Send (post), 1 x Monitor
Send (pre) - Send/Return I/O:1 x 1/4″ (FX send), 1 x
1/4″ (monitor send) - Busses/Groups:1 x Sub Group
- Inserts:4 x 1/4″ (channel)
- Headphones:1 x 1/4″
- USB:1 x Type B
- Other I/O:1 x 1/4″ (footswitch)
- EQ Bands:3-band EQ, 100Hz Low-cut
Filter - Signal Processing:4 x Channel
Compressors - Effects:GigFX Engine: Reverbs, Chorus, Delay,
Flange, Auto-Wah - Software:Pro Tools First, Waveform OEM DAW,
Additional Plug-in packages available - Power Source:12V DC power supply
(included) - Height:102 mm
- Width:376 mm
- Depth:330
- Weight:3,6 kg
