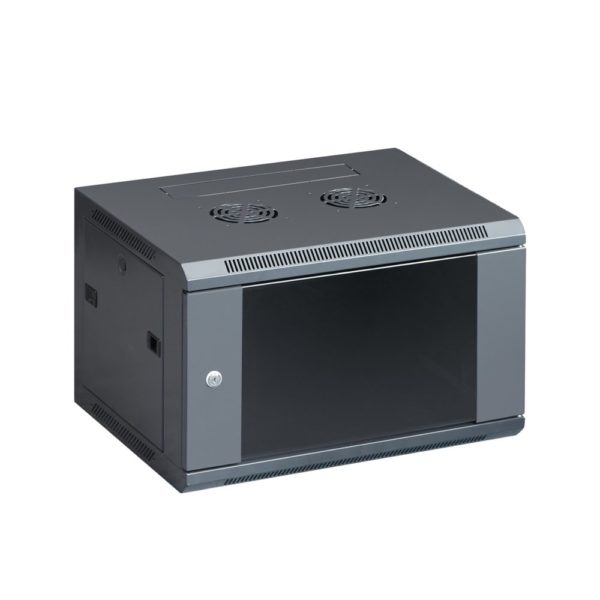

19″ Server Cabinet for Wall Mounting
When 19” equipment must be protected in permanent installations, but installed so that it remains easily accessible, professional wall-mount server cabinets from Adam Hall are the ideal solution for a wide range of applications. They feature a sturdy frame made of cold-rolled steel with a load bearing capacity of up to 60kg. The 1.5mm thick mounting rails are square punched. Matching cage nuts and bolts are included.
The server cabinets comply with the standards DIN41491 Parts 1 and 7, IEC297-2, and ANS/EIA RS-310-D, GB/T3047.2-92 and the protection class IP20. The are available with a black powder-coated finish with 6, 9, and 12 U in depths of 450 and 600mm.
The front door with a hardened, tinted glass insert has an opening angle of 180°. Removable plates on the top and bottom can be used for cable insertion. The top is additionally prepared for installation of a fan. The side panels can be removed for easy installation and connection of the equipment.
- Type: wall-mountable
- Material: steel
- Surface: powder-coated
- Colour: RAL 9004 (black)
- Lockable: yes
- Load rating: 60 kg
- IP protection class: 20
- Height: 6 U
- Depth: 450 mm
