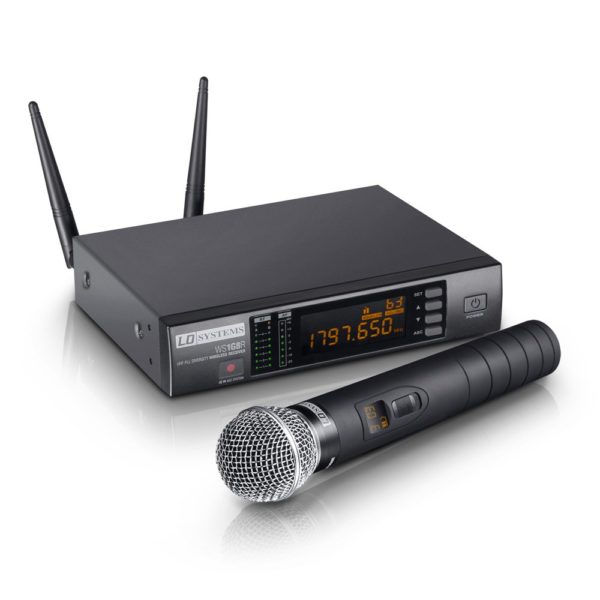

192 CHN UHF TRUE DIVERSITY WIRELESS SYSTEM WITH 1,8 GHZ TECHNOLOGY
~
192 CHN UHF TRUE DIVERSITY WIRELESS SYSTEM WITH 1,8 GHZ TECHNOLOGY
The LD Systems WS1G8 is an advanced LICENSE FREE* 192 channel true diversity UHF wireless microphone system delivering natural sound with a wide dynamic range, high S/N ratio and low THD in the frequency range from 1785-1800 MHz.
The WS1G8 series allows the use of up to 6 systems simultaneously and is shipped in various configurations. You can choose between dynamic or condenser handheld microphones, a beltpack transmitter with either a headset, lavaliere-microphone, clip-on wind instrument microphone or guitar adaptor cable. It provides consistent audio transmission from 60 Hz to 16 kHz.
Handheld and belt pack feature convenient LCD indication of channel, group and battery status. Automatic channel scanning, Infrared sync function (ASC) and the backlit multifunction receiver display facilitate system setup and operation.
The operating time ranges up to 13 hours with high quality AA batteries. All WS1G8 systems come with a rugged ABS plastic carrying case.
* license free: see PDF „Usage of 1.8 GHz frequency band in Europe for wireless microphones“
Set composed of:
LDWS1G8MD
LDWS1G8R
Model name: LDWS1G8MD
Product type: Handheld microphone transmitter
Radio frequency range: 1785 – 1.800 MHz
Channels: 192 (16 groups of 12 channels)
Microphone type: dynamic
Directional characteristic: cardioid
Audio frequency response: 50 Hz – 16 kHz
RF output: 10 mW
Controls: Power On/Off
Indicators: LC display
Power supply: 2 x 1.5 V AA
Operating time: up to 13 hrs., battery-dependent
Length: 252 mm
Diameter: 52 mm
Model name: LDWS1G8R
Product type: Receiver
Type: True Diversity
Radio frequency range: 1785 – 1.800 MHz
Channels: 192 (16 groups of 12 channels)
Antenna inputs: 2
Antenna connector: TNC
Frequency response: 50 Hz – 16 kHz
Noise suppression: Squelch
THD: < 0,6 %
Unbalanced audio output: XLR – 12 dBV (600 ohms) / 6.3 mm TRS – 18 dBV (3 kohms)
Controls: Power On/Off, Set, Up, Down, ASC
Indicators: LC display, 2 x 6-segment RF (A/B), antenna active (A/B), 7-segment AF
Power supply: 12 – 18 V DC
Width: 212 mm
Height: 44 mm
Depth: 160 mm
