Cameo SB8.3 – 8-channel DMX splitter / booster (3-pin)

kr 2.787,50

inkl. mva

Cameo CLSB83 er en profesjonell, rackmonterbar DMX splitter. CLSB83 både splitter og forsterker DMX-signalet til inntil 8 elektrisk isolerte utganger. Via link-utgangen kan splitteren kobles parallelt videre til enda en splitter.

CLSB83 kan monteres med inn- og utganger på forsiden av racket. Det forenkler oppkobling og endringer i DMX-nettverket. Ønsker man 5-pins inn- og utganger, finnes en egen utgave; CLSB85

Varenummer: 610636 Kategorier: , ,

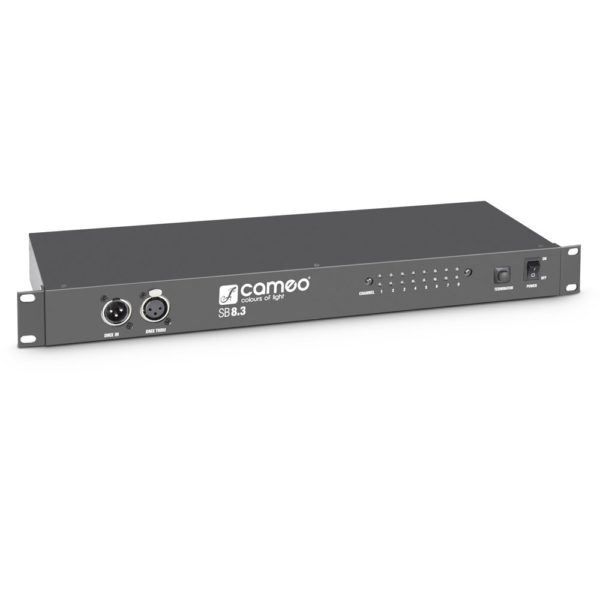

The Cameo CLSB83 is the professional solution for configuring DMX networks. The splitter and booster in 19″ format amplifies the DMX input signal and distributes it to 8 electrically isolated outputs. It is connected directly to the DMX controller or to DMX devices. The input and the THRU socket for looping of the signalare duplicated on the front and back of the CLSB83 and connected in parallel. Bright LEDs show the DMX and power status of the channels on the front panel, the outputs are located on the back. Aswitchable 120 Ohm terminating resistor on the DMX THRU output and the power switch complete the equipment; the IEC-cable is supplied. For convenient output connector access and reverse installation the rack-mount angles can be attached to the rear of the chassis.

The Cameo DMX splitter and booster is also available in 5-pin design (art. No CLSB85).

·         Type: DMX 512 protocol

·         DMX Inputs: 2 (parallel)

·         DMX Input Connectors: 3-pin XLR male

·         DMX Thru Outputs: 2 (parallel)

·         DMX Thru Output Connectors: 3-pin XLR female

·         DMX Outputs: 8 (electrically isolated)

·         DMX Output Connectors: 3-pin XLR female

·         Controls: Power On/Off, DMX Thru Terminator

·         Indicators: 8 x Power LED, 8 x Signal LED

·         Power Socket: IEC power socket

·         Power Supply: transformer

·         Operating Voltage: 230 V AC, 50 Hz

·         Power Consumption (max.): 15 W

·         Dimensions (W x H x D): 483 x 44 x 160 mm

·         Accessories included in package: power cord
