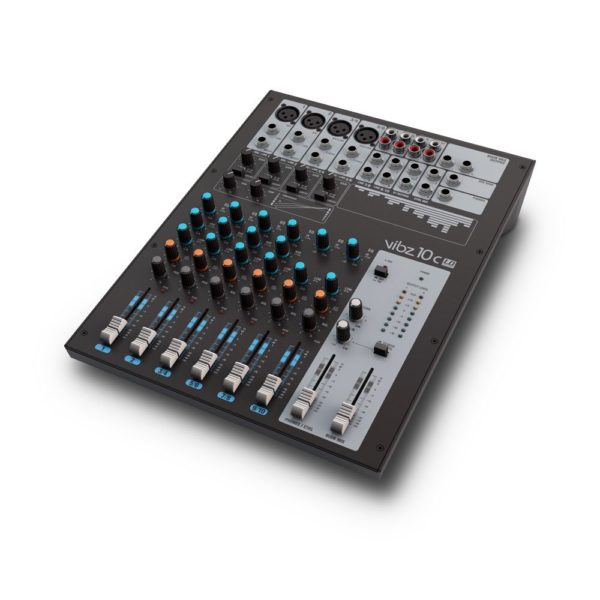

LD Systems Vibz 10C, 10-kanals lydmikser med kompressor

kr 1471,20

inkl. mva

VIBZ 10 C er en meget potent 10-kanals mikser med 4 mikrofon-innganger med innebygget kompressor/limiter! Kanal 1 og 2 er mono-kanaler, kanal 3/4 og 5/6 er stereo-kanaler, men kan også benyttes i mono. Stereo-inngangene har 2-bånds eq og alle inngangene har AUX-utgang med en egen effekt send kontroll.

Master-seksjonen har egen utgang for monitor, headphone jack utgang og 16 digitale effekt-presets. Mikseren har input og output for avspilling og innspilling.

Lyden fra VIBZ mikserne er detaljert og «varm»!

Video

Varenummer: 610466-VIBZ10 Kategorier: , , ,

The VIBZ 10 C is a versatile mixer with four balanced microphone inputs featuring high quality preamplifiers, a low-cut filter and switchable phantom power. Two microphone inputs are equipped with inserts for individual signal processing, two more can alternatively be used as stereo line channels.


For an effective sound adjustment, the VIBZ 10 C has very precise 3-band EQs with conveniently selected mids; two stereo channels can be adjusted with 2-band EQs. The built-in compressor can be continuously adjusted for effective dynamics processing.


The master section of the mixer has an effects loop, adjustable monitor outputs and a headphone jack. The VIBZ 10 C also has inputs and outputs for recording and playback devices; the input signal can be set on the master or monitor output and the volume adjusted.


With its transparent, detailed sound and easy operation, VIBZ 10 C is the perfect choice for small bands, installations and home recording or sub mixer applications. It comes with an external power supply that can be tightly secured to the mixer. A foot switch for the effects section and an adapter for mounting the VIBZ 10 C on microphone stands are available as accessories.



Item Number: LDVIBZ10C


·         Product Type: mixer


·         Type: live


·         Number of Channels: 10


·         Mono Mic/Line Input Channels: 4


·         Mono Mic/Line Input Connections: 6.3 mm stereo jack, XLR


·         Mono Mic Input Type: electronically balanced


·         Frequency Response Mono Mic Input: 10 – 45,000 Hz


·         Amplification Range Mono Mic Input: 0 – +50 dB


·         Channel Insert: 2


·         Channel Insert Connections: 6.3 mm stereo jack (TIP= send / RING= return)


·         Channel Crosstalk: 62 dB


·         THD Mono Mic Input: 0.0058 %


·         Impedance Mono Mic Input: 4 kOhm


·         S/N Ratio Mono Mic Input: 113 dB


·         Mono Line Input Type: electronically balanced


·         Amplification Range Mono Line Input: 0 – +50 dB


·         Frequency Response Mono Line Input: 10 – 45,000 Hz


·         THD Mono Line Input: 0.0045 %


·         Impedance Mono Line Input: 21 kOhm


·         S/N Ratio Mono Line Input: 116 dB


·         Mono Channel Equalizer Treble: +/- 15 dB 12,000 Hz


·         Mono Channel Equalizer Mids: +/- 15 dB 2,500 Hz


·         Mono Channel Equalizer Bass: +/- 15 dB 80 Hz


·         Control Elements Mono Mic and Line Input Channels: Channel volume, PAN, AUX (Post), 3 band EQ (Low, Mid, High), Compressor (channel 1+2) Low-Cut, Gain


·         Phantom Power: +48 V DC switchable


·         Low Cut: 95 Hz


·         Compressor: Yes, sliding adjustable characteristic


·         Stereo Line Input Channels: 4


·         Stereo Line Input Channels: 2 x 6.3 mm stereo jack (Lmono,R) (channel 3/4 + 5/6) 2 x 6.3 mm stereo jack (channel 7/8 + 9/10) 4 x RCA (Cinch) (Channel 7/8 + 9/10)


·         Stereo Line Input Type: unbalanced / electronically balanced


·         Frequency Response Stereo Line Input: 10 – 45,000 Hz


·         Amplification Range Stereo Line Input: 0 – +50 dB


·         THD Stereo Line Input: 0.0045 %


·         Impedance Stereo Line Input: 3.7 kOhm


·         S/N Ratio Stereo Line Input: 116 dB


·         Stereo Channel Equalizer Treble: +/- 15 dB 12,000 Hz


·         Stereo Channel Equalizer Mids: +/- 15 dB 2,500 Hz (channel 3/4 + 5/6)


·         Stereo Channel Equalizer Bass: +/- 15 dB 80 Hz


·         Control Elements Stereo Line Input Channels: Channel volume, Balance, AUX (Post), 3 band EQ (Low, Mid, High), channel 3/4 + 5/6, 2-band EQ (Low, High) channel 7/8 + 9/10 Low-Cut channel 3/4 + 5/6 Gain channel 3/4 + 5/6


·         Main Section:


·         AUX/Effect Send Channels: 1


·         AUX/Effect Send Connections: 6.3 mm stereo jack, unbalanced


·         Stereo AUX Return Channels: 1 x stereo


·         Stereo AUX Return Connections: 6.3 mm stereo jack


·         Stereo Tape Output Channel: 1 x stereo


·         Stereo Tape Output Connections: 2 x RCA (Cinch)


·         Stereo Tape Input Channel: 1 x stereo


·         Stereo Tape Input Connections: 2 x RCA (Cinch)


·         Unbalanced Stereo Main Outputs: 1


·         Unbalanced Stereo Main Output Connections: 6.3 mm stereo jack, unbalanced


·         Impedance Unbalanced Stereo Main Outputs: 120 Ohm


·         Max. Level Unbalanced Stereo Main Outputs: +20 dBV


·         Stereo Control Room Outputs: 1


·         Stereo Control Room Output Connections: 6.3 mm stereo jack


·         Headphone Output: 1


·         Headphone Output Connections: 6.3 mm stereo jack


·         Minimum Headphone Impedance: 30 Ohm


·         Digital Effects Processor: no


·         No. of Presets: none


·         Footswitch Connection DFX Mute: n/a


·         Control Elements Main Section: Headphones / Control Room Volume 2TK In, Stereo Return Volume, Phantom Power, Master Volume, 2TR allocation (Main, CTRL Room)


·         Display Elements: 8-segment Level Meter, Phantom Power, Power, Channel Peak


·         Power Supply: 18 V AC – 1 A, External PSU


·         Width: 265 mm


·         Height: 78 mm


·         Depth: 352 mm
