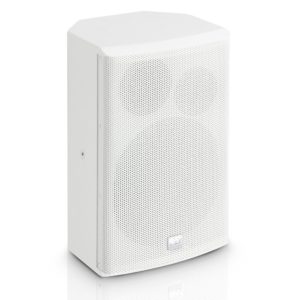

The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10″ custom woofer and a 1″ compression driver is operated with a rechargeable battery for up to 8 hours and is powered by aclass D power amplifier with a highly efficient switching power supply and 480 watts of peak power.
The Roadbuddy relies fully on wireless transmission: it has an UHF radio receiver which operates in the license-free 863 – 865 MHz range, and can be expanded with an additional system. The on-board Bluetooth player with backlit multifunction display, equalizer, USB port and SD card slot supports the mp3, wma and wav formats. A handheld microphone with 10 mW output power(LDRBUD10) or as an alternative a headset microphone with belt pack (LDRBUD10HS) and an IR-remote control for the player are included.
For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.
The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.
Product Type: Mobile PA speaker
· Type: active
· Woofer Size: 10″
· Woofer Size: 254 mm
· Woofer Magnet: ferrite
· Woofer Brand: custom made
· HF Driver Size: 1″
· HF Driver Size: 25.4 mm
· HF Driver Magnet: ferrite
· HF Driver Brand: custom made
· Amplifier: class D
· Power Output (RMS): 120 W
· Power Output (Peak): 480 W
· Frequency Response: 55 – 18,000Hz
· SPL (1 W/1 m): 96 dB
· Max SPL: 115 dB
· Protection Circuits: overvoltage, short circuit, limiters, DC
Mixer modul
· Controllers: AUX / MP3 Switch, High, Low, Master Volume, Mic 2 Level, Mic 1 Level, CD / Tape IN Level, Echo
· Indicators: power, charge/battery status
· Line Inputs: 1
· Line Input Connectors: 3.5 mm jack, 2 x RCA, 2 x XLR, 6.3 mm jack
· Mic Inputs: 2
· Mic Input Connectors: 2 x XLR, 6.3 mm jack
Media Player
· Supported Media: USB stick, Bluetooth, SD card
· Supported Formats: MP3, WMA, WAV
· Media Player Controls: Stop, Next track, Previous track, Repeat, Mode (Menu / Bluetooth / SD / USB), Play / Pause, Equalizer
· Media Player Display Elements: backlit multifunction LC display
Wireless Unit
· Radio Frequency Range: 863 – 865 MHz
· Modulation Type: analogue FM
· Channels: 16
· Frequency Response: 50 Hz – 17 kHz
· Controllers: Power/Volume, Value Up, Value Down, ASC, MUTE-Level (squelch)
· Indicators: LED display, RF (LED), AF (LED)
· Connections: nTNC for receiver antenna
· RF Transmitter Power Output: 10 mW
· Handheld Microphone Weight: 285 g
· Handheld Microphone Material: aluminium
Specifications
· Power Supply: switching power supply
· Operating Voltage: 220 – 240 V / 50 Hz, 100 – 120 V / 60 Hz
· Rechargeable Batteries: 12 V / 5 Ah
· Cabinet Material: PP black
· Cabinet Type: bass reflex
· Width: 415 mm
· Height: 525 mm
· Depth: 328 mm
· Other Features: IR remote control for Media Player, carrying handle, 36 mm tripod flange, pull-out handle, castor wheels
