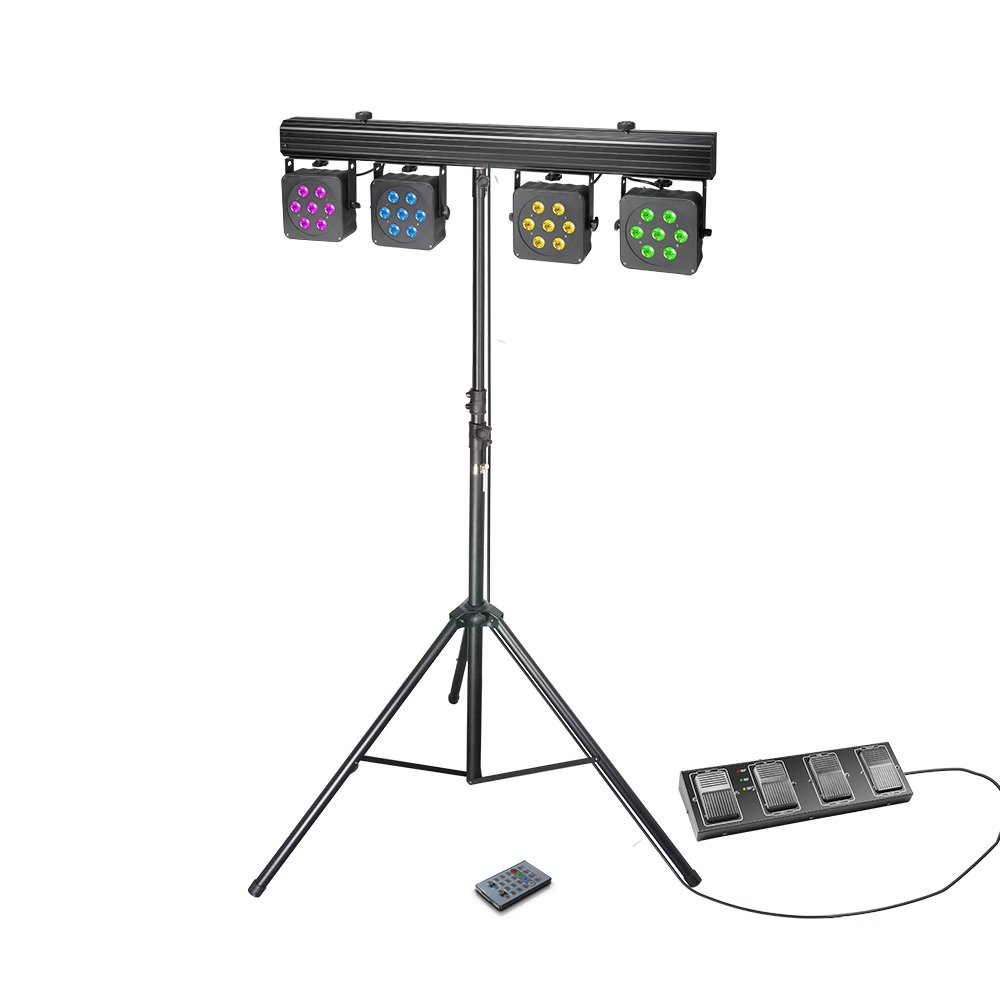

Specifications CLMPAR3
- Product type: compact LED lighting system
- Type: bar with 4 flat cans
- Colour spectrum: RGBW
- Number of LEDs: 4 x 7
- LED type: 8 W QUAD colour
- Beam angle: 25°
- DMX input: XLR 3-pole
- DMX connector: XLR 3-pole
- DMX mode: 4-channel 1, 4-channel 2, 6-channel, 8-channel, 9-channel, 16-channel, 21-channel
- DMX functions: RGBW, master dimmer, strobe, sound control, program mode, 2 switchable power sockets
- Controller connector: XLR-5-pole
- Remote control: IR
- Stand-alone modes: Program mode (static colour, colour change, colour fading… ), sound mode, slave, auto run, dimmer mode
- Stand-alone modes: flow invert, dimmer curve, master dimmer
- Controls: Mode, Enter, Value Up, Value Down
- Indicators: LC display with 2 x 16 characters
- Cooling system: convection
- Luminous intensity
1 m (per LED element): 6400 lx - Power supply: 90 V AC – 250 V AC
- Power consumption: 210 W
- Power connector: Neutrik PowerCon in/out, switchable power sockets: 2 x Schuko
- Housing material: metal
- Housing colour: black
- Dimensions: 1030 x 290 x 100 mm
Specifications CLMPARFOOT2
- Product: Foot Switch
- Controls: Mode, Up, Down, Blackout, Microphone Sensitivity
- Indicators: Red, Green, Yellow LED
- Connector: 5-pole XLR male
- Functions: Static Colour, Sound Active, Program Selection, Full On, Blackout
- Dimensions: 450 x 150 x 60 mm
- Features: 10 m 5-pole XLR cable
Specifications SLTS017E
- Stand material: steel
- Crossbar material: steel
- Stand surface: powder-coated
- Crossbar surface: powder-coated
- Stand colour: black
- Crossbar colour: black
- Number of extensions: 2
- Min height: 1700
- Max height: 3500
- Transport length: 1410
- Holding fixture for TV spigot: yes
