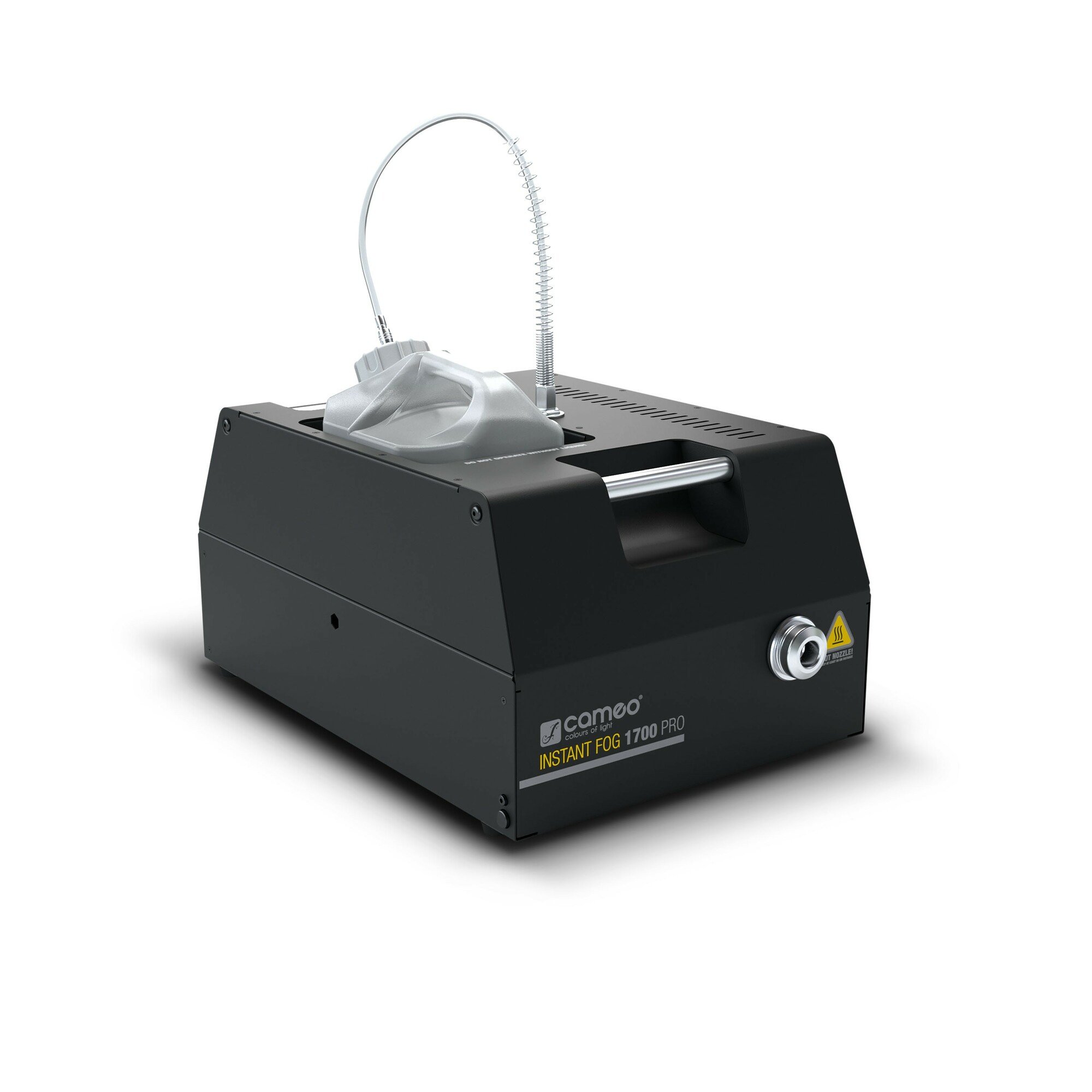

Cameo INSTANT FOG 1700 PRO
Type Fog Machine
Power 1700 W
Warm-up time ca. 7 minutes
Fog duration ca. 40 seconds @ 100% Output / Non-Stop @ 50%
Output
Reheating time approx. 60 sec.
Fluid tank capacity 5 l
Fluid Consumption ca. 150 ml/min
DMX input XLR 3-pin male , XLR 5-pin male
DMX output XLR 3-pin female , XLR 5-pin female
DMX mode 3-channel
DMX Functions Output Volume , Timer Duration , Timer
Interval
Controls Enter , Mode , Value Down , Value Up
Indicators LCD display
Operating voltage 230 – 240 V AC / 50 – 60 Hz
Fuse T10AL 250 V
Power consumption 1800 W
Power connector Powercon compatible
Cabinet colour Black
Width 354 mm
Height 225 mm
Length 310 mm
Weight 14,63 kg
