Salg!

LD Systems MAUI 44 Sub Extention, sort, -30%

kr 8.792,00

inkl. mva

Ekstra bass-krefter

  • MAUI-44 bass extention dobler «kreftene» mellom 40 og 140 Hz.
  • Denne aktive båndpass-høyttaleren presterer fantastiske 800 watt RMS (vedvarende lydtrykk).
  • Frekvensgang på 40Hz-140kHz innenfor strenge målekriterier.
  • Byggematerialet er 15mm bjørke-finer, slitesterkt og lett på samme tid.
  • I kassen sitter 2 stk 12″ neodymium høyttalere-elementer drevet av to Hypex forsterkermoduler.
  • Høyttalerne «fores» av en klasse D forsterker som sikrer en rik og fast bass!

Tilgjengelighet Kun 1 på lager

Varenummer: 610596-M44EXT Kategorier: ,

LD Systems MAUI44SE

Subwoofer extension for MAUI44 systems and standalone.

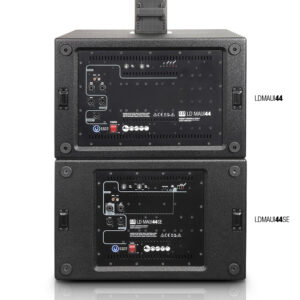

The LD Systems MAUI44SE is a powerful active subwoofer, especially designed for the extension of MAUI44 systems. The compact bandpass design augments the deep bass performance of the system by twice the SPL to (+6 dB) and can be integrated into the system within seconds. Through a slave preset, the MAUI44SE takes over the settings of the system subwoofer, a standalone preset allows it to be used with other satellite speakers.

The housing made of 15 mm multiplex is equipped with two 12″ neodymium woofers. The Class D amplifier of the MAUI44SE with highly efficient switching power supply provides a whopping 800 watts RMS; protection circuits against overvoltage, short circuit and overcurrent ensure reliable operation. The frequency response of the subwoofer ranges from 40 to 140 Hz, the maximum sound pressure is 129 dB.

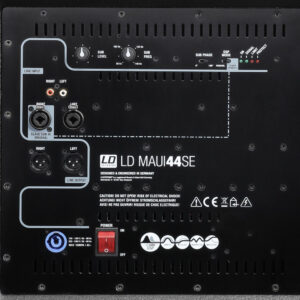

An integrated LECC DSP with 24-bit converters and limiters, EQ, compressor and crossover functions provide an optimal bass reproduction. Furthermore, the MAUI44SE is equipped with controls for the subwoofer level, crossover frequency and phase, LED indicators and a Neutrik PowerCon mains connector. The ergonomic LD Systems Evolutive carrying handles allow for convenient transportation; an optional castor board can securely connect to the subwoofer via butterfly latches.

Type: active

·         Woofer Size: 2 x 12″

·         Woofer Size: 2 x 304.8 mm

·         Woofer Magnet: neodymium

·         Woofer Brand: custom made

·         Amplifier: class D

·         Amplifier Power (RMS): 800 W

·         Max. SPL (continuous): 121 dB

·         Max. SPL (peak): 129 dB

·         Frequency Response: 40 Hz – 140 Hz

·         Protection: multiband limiter, overvoltage, short circuit, overcurrent

·         Cooling System: passive

·         Controls: Sub Level, Sub Freq, Sub Phase, Power ON / OFF, DSP Mode

·         Indicators: LEDs for: On, Signal, Limit, Protect

·         Line Inputs: 2

·         Line Input Connectors: RCA, XLR, 6.3 mm jack

·         Line Outputs: 1

·         Line Output Connectors: XLR

·         Power Socket: Neutrik PowerCon

·         Power Supply: switching power supply

·         Operating Voltage: 100 V AC – 120 V AC, 50 – 60 Hz; 200 V AC – 240 V AC, 50 – 60 Hz

·         Power Consumption (max.): 1000 VA

·         Cabinet Type: bandpass

·         Cabinet Material: 15 mm plywood

·         Cabinet Surface: polyurethane

·         Cabinet Colour: black

·         Subwoofer Dimensions (W x H x D): 620 x 412 x 615 mm

·         DSP Specifications

·         DSP Functions: Limiter, EQ, Compressor, Crossover

·         Resolution A/D – D/A: 24 Bit – 24 Bit

·         Sampling Rate: 48 kHz

·         Noise Ratio: 100 dB
