UHF true diversity trådløst system i 1,8 MHZ-båndet (fritt i hele Norge).
The LD Systems WS1G8 is an advanced LICENSE FREE* 192 channel true diversity UHF wireless microphone system delivering natural sound with a wide dynamic range, high S/N ratio and low THD in the frequency range from 1785-1800 MHz.
The WS1G8 series allows the use of up to 6 systems simultaneously and is shipped in various configurations. You can choose between dynamic or condenser handheld microphones, a beltpack transmitter with either a headset, lavaliere-microphone, clip-on wind instrument microphone or guitar adaptor cable. It provides consistent audio transmission from 60 Hz to 16 kHz.

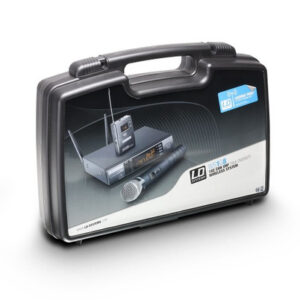

The operating time ranges up to 13 hours with high quality AA batteries. All WS1G8 systems come with a rugged ABS plastic carrying case.
* license free: see PDF „Usage of 1.8 GHz frequency band in Europe for wireless microphones“
Set composed of:
- LDWS1G8MD
- LDWS1G8R
- Model name: LDWS1G8MD
- Product type: Handheld microphone transmitter
- Radio frequency range: 1785 – 1.800 MHz
- Channels: 192 (16 groups of 12 channels)
- Microphone type: dynamic
- Directional characteristic: cardioid
- Audio frequency response: 50 Hz – 16 kHz
- RF output: 10 mW
- Controls: Power On/Off
- Indicators: LC display
- Power supply: 2 x 1.5 V AA
- Operating time: up to 13 hrs., battery-dependent
- Length: 252 mm
- Diameter: 52 mm

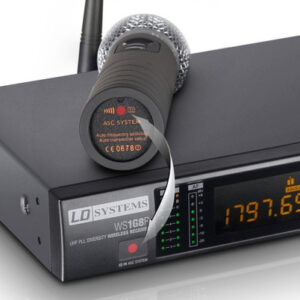

- Model name: LDWS1G8R
- Product type: Receiver
- Type: True Diversity
- Radio frequency range: 1785 – 1.800 MHz
- Channels: 192 (16 groups of 12 channels)
- Antenna inputs: 2
- Antenna connector: TNC
- Frequency response: 50 Hz – 16 kHz
- Noise suppression: Squelch
- THD: < 0,6 %
- Unbalanced audio output: XLR – 12 dBV (600 ohms) / 6.3 mm TRS – 18 dBV (3 kohms)
- Controls: Power On/Off, Set, Up, Down, ASC
- Indicators: LC display, 2 x 6-segment RF (A/B), antenna active (A/B), 7-segment AF
- Power supply: 12 – 18 V DC
- Width: 212 mm
- Height: 44 mm
- Depth: 160 mm
