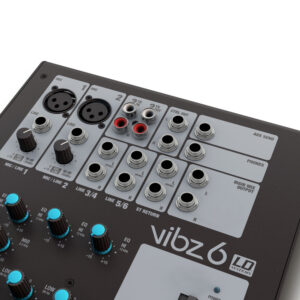

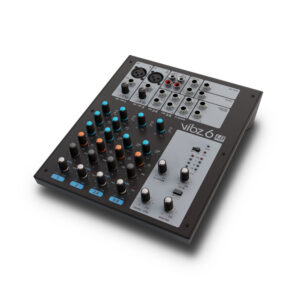

The VIBZ 6 is a compact 6-channel mixer which is perfectly suited to entertainers, small bands, home recording and installations. It features two balanced microphone inputs with high quality preamps, phantom power and 3-band EQ with +/-15 dB adjustment scope, two stereo line inputs with 2-band EQ, which are mono-compatible, and an effects loop.
The master section of the VIBZ 6 is equipped with adjustable monitor outputs and a headphone jack output.The mixer also has inputs and outputs for recording and playback devices, is extremely easy to use and offers a warm differentiated sound. The external power supply can be screwed on tightly.
A foot switch for the effects section and an adapter for mounting the VIBZ 6 D on microphone stands are available as accessories.
· Item Number: LDVIBZ6
· Product Type: mixer
· Type: live
· Number of Channels: 6
· Mono Mic/Line Input Channels: 2
· Mono Mic/Line Input Connections: 6.3 mm stereo jack, XLR
· Mono Mic Input Type: electronically balanced
· Frequency Response Mono Mic Input: 10 – 45,000 Hz
· Amplification Range Mono Mic Input: 0 – +50 dB
· Insert: n/a
· Channel Crosstalk: 62 dB
· THD Mono Mic Input 0.0058 %
· Impedance Mono Mic Input: 4 kOhm
· S/N Ratio Mono Mic Input: 113 dB
· Mono Line Input Type: electronically balanced
· Amplification Range Mono Line Input: 0 – +50 dB
· THD Mono Line Input: 0.0045 %
· Impedance Mono Line Input: 21 kOhm
· S/N Ratio Mono Line Input: 116 dB
· Frequency Response Mono Line Input: 10 – 45,000 Hz
· Mono Channel Equalizer Treble: +/- 15 dB 12,000 Hz
· Mono Channel Equalizer Mids: +/- 15 dB 2,500 Hz
· Mono Channel Equalizer Bass: +/- 15 dB 80 Hz
· Control Elements Mono Mic and Line Input Channels: Channel volume, PAN, 3 Band-EQ (Low, Mid, High), Gain
· Phantom Power: +48 V DC switchable
· Low Cut: n/a
· Compressor: n/a
· Stereo Channels:
· Stereo Line Input Channels: 2
· Stereo Line Input Channels: 6.3 mm mono jack (Lmono, R)
· Stereo Line Input Type: unbalanced
· Frequency Response Stereo Line Input: 10 – 45,000 Hz
· Channel Crosstalk: 62 dB
· THD Stereo Line Input: 0.0045 %
· Impedance Stereo Line Input: 3.7 kOhm
· S/N Ratio Stereo Line Input: 116 dB
· Stereo Channel Equalizer Treble: +/- 15 dB 12,000 Hz
· Stereo Channel Equalizer Mids: n/a
· Stereo Channel Equalizer Bass: +/- 15 dB 80 Hz
· Control Elements Stereo Line Input Channels: Channel volume, Balance, DFX/AUX (Post), 2 Band-EQ (Low, High)
· Main Section:
· AUX/Effect Send Channels: 1
· AUX/Effect Send Connections: 6.3 mm stereo jack, unbalanced
· Stereo AUX Return Channels: 1 x stereo
· Stereo AUX Return Connections: 2 x 6.3 mm stereo jack
· Stereo Tape Output Channel: 1 x stereo
· Stereo Tape Output Connections: 2 x RCA (Cinch)
· Stereo Tape Input Channel: 1 x stereo
· Stereo Tape Input Connections: 2 x RCA (Cinch)
· Unbalanced Stereo Main Outputs: 1
· Unbalanced Stereo Main Output Connections: 6.3 mm stereo jack, unbalanced
· Impedance Unbalanced Stereo Main Outputs: 120 Ohm
· Max. Level Unbalanced Stereo Main Outputs: +20 dBV
· Stereo Control Room Outputs: 1
· Stereo Control Room Output Connections: 6.3 mm stereo jack, unbalanced
· Headphone Output: 1
· Minimum Headphone Impedance: 30 Ohm
· Headphone Output Connections: 6.3 mm stereo jack
· Digital Effects Processor: Yes, 24-bit AD/DA Resolution
· No. of Presets: 16
· Footswitch Connection DFX Mute: 6.3 mm stereo jack
· Control Elements Main Section: Headphones / Control Room Volume, Stereo Return Volume, DFX To Main Volume, DFX Presets, Master-Volume, 2TR assignment (Main, CTRL Room), 2TK Volume, Phantom Power, DFX Mute switch
· Display Elements: 4-segment Level Meter, Phantom Power, DFX Peak / Mute, Power, Channel Peak
· Power Supply: 18 V AC – 1 A, External Power Pack
· Width: 209 mm
· Height: 68 mm
· Depth: 260 mm
