The Roadbuddy 6 is the ultra compact complete solution for voice and music
Can be operated for up to 5 hours thanks to a high quality battery. A Class-D power amplifier with 200 watts peak performance powers the combination of 6″ woofer and 1″ compression driver, which reach a maximum sound pressure level of 110 dB.
The Roadbuddy 6 is easily transportable and can be operated totally wirelessly using Bluetooth and a wireless microphone. The integrated FM receiver works in the license-free 863 – 865 Mhz range; the Bluetooth player plays MP3, WAV, and WMA files, and also features a USB port and an SD card slot. A handheld microphone (LDRBUD6) or a headset with Bodypack (LDRBUD6HS) and an IR remote control for the player are included.
Wired devices can, of course, also be connected to the Roadbuddy 6. To do this, two controllable Mic-Line channels with combo sockets, a monosummed stereo input with RCA jacks (Cinch) and an AUX input via 3.5 mm mini jack are provided. A Master volume and Master tone controller complete the device with a rugged plastic housing featuring a 35 mm flange adapter.
- Product Type: mobile PA speaker
- Type: active
- Woofer Size: 6″
- Woofer Size: 170 mm
- Woofer Magnet: ferrite
- Woofer Brand: custom made
- HF Driver Size: 1″
- HF Driver Size: 25.4 mm
- HF Driver Magnet: ferrite
- HF Driver Brand: custom made
- Amplifier: class D
- Power Output (RMS): 50 W
- Power Output (Peak): 200 W
- Frequency Response: 110 – 18,000 Hz
- SPL (1 W/1 m): 92 dB
- Max SPL: 110 dB
- Protection Circuits: overvoltage, short circuit, limiters, DC

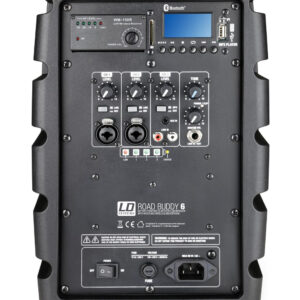

- Controllers: AUX / MP3 Switch, High, Low, Master Volume, Mic 2 Level, Mic 1 Level, CD / Tape IN Level, Echo
- Indicators: power, charge/battery status
- Line Inputs: 4
- Line Input Connectors: 3.5 mm jack, 2 x RCA, 2 x XLR, 6.3 mm jack
- Mic Inputs: 2
- Mic Input Connectors: 2 x XLR, 6.3 mm jack
Media Player
- Supported Media: USB stick, Bluetooth, SD card
- Supported Formats: MP3, WMA, WAV
- Media Player Controls: Stop, Next track, Previous track, Repeat, Mode (Menu / Bluetooth / SD / USB), Play / Pause, Equalizer
- Media Player Display Elements: backlit multifunction LC display
Wireless Unit
- Radio Frequency Range: 863 – 865 MHz
- Modulation Type: analogue FM
- Channels: 1
- Frequency Response: 50 – 17 kHz
- Controllers: Power/Volume
- Indicators: LED display, RF (LED), AF (LED)
- RF Transmitter Power Output: 10 mW
- Handheld Microphone Weight: 285 g
- Handheld Microphone Material: aluminium
Specifications
- Power Supply: switching power supply
- Operating Voltage: 220 – 240 V / 50 Hz, 100 – 120 V / 60 Hz
- Rechargeable Batteries: 12 V / 5 Ah
- Cabinet Material: PP black
- Cabinet Type: bass reflex
- Width: 245 mm
- Height: 377 mm
- Depth: 205 mm
- Other Features: IR remote control for Media Player, carrying handle, 36 mm tripod flange
