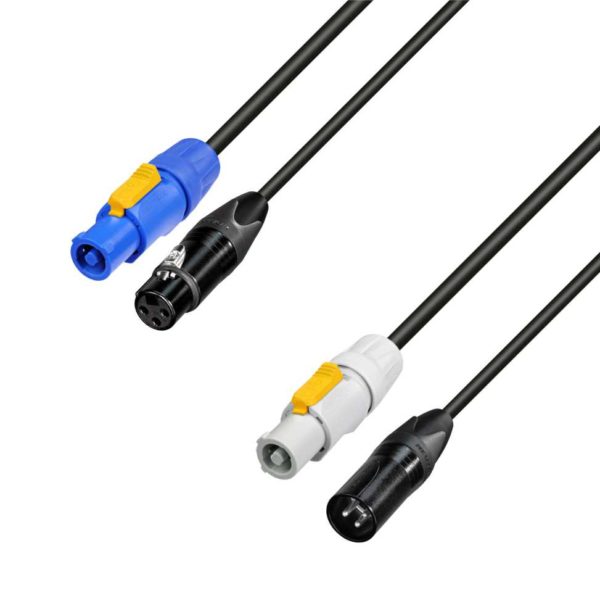

Hybridkabel: Nettstrøm + DMX i ett
- Length 1,5 m
- Splice length 40 cm
- Colour Black
- Overall diameter 15 mm
- Jacket material PVC
- Connector 1-A NAC3FCA
- Connector 1-B NC3FXX-BAG
- Connector 2-A NAC3FCB
- Connector 2-B NC3MXX-BAG
- Assembly mains cable 3 x 1.5 mm²
- AWG 24
- Cross-section 0.22 mm²
- Assembly signal conductor 2 x 0,22 mm²
- Number of internal conductors 2
- Conductor resistance 85 ohm/km
- Current carrying capacity 55 pF/m
- Surge Impedance 120 ohm/km
- Shield PE filler, tinned copper braided shielding with
96 x 0.10 mm + AL - Weight 0,43 kg
